New-Tech™ Down Draft Table Pictures
(6 of 12)
|

|
 |

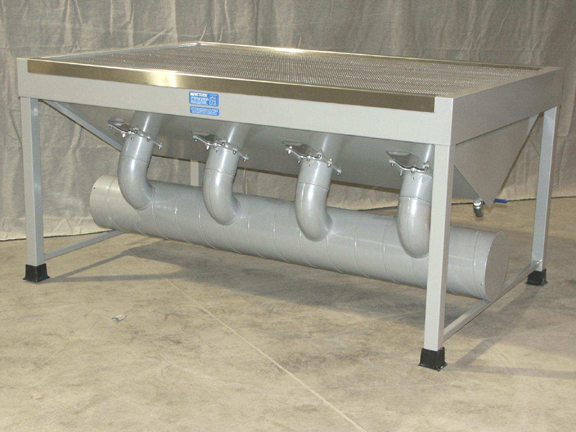

- Down Draft Table Picture DDT-06
- Rear View of a Custom Down Draft Table shown in picture DDT-04 and DDT-05.
- This table was designed to be used from both sides by users sitting on chairs. The table was designed with a lower work surface height of 30" to allow the users to be able to place their legs under the table while working.
- This picture shows the adjustable dampers used to balance the airflow across the work surface.
- This picture shows the drain that in located on the end of the exhaust chamber to allow for drainage of any liquids.
- This table is constructed of cold rolled steel with a baked on epoxy powder coated finish.
- The work surface is Stainless Steel perforated material with 1/4" dia. holes on 3/8" staggered centers.
|
|
