New-Tech™ Down Draft Table Pictures
(12 of 12)
|

|
 |

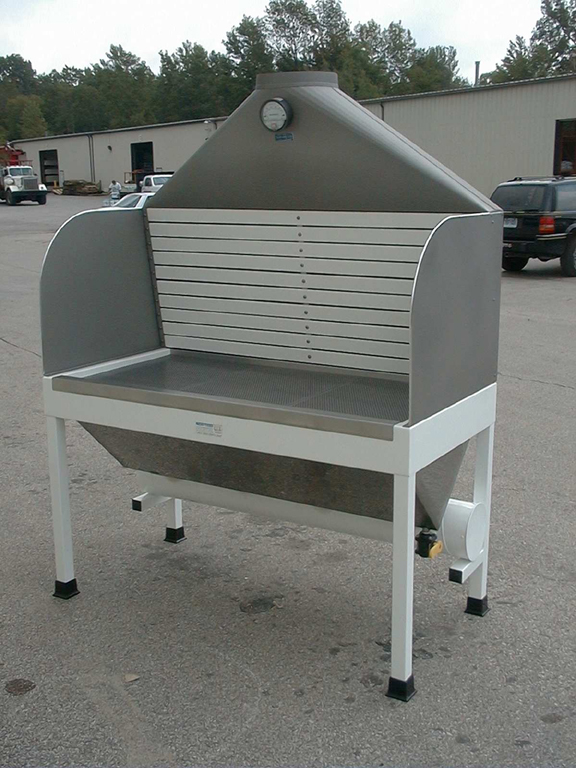

- Down Draft Table Picture DDT-12
- Front View of a Custom Down Draft Table that also includes a Custom Slot Exhauster.
- This assembly combined the airflow capturing abilities of the Down Draft Table and the Slot Exhauster to help exhaust the fumes and better protect the user.
- This table is constructed of cold rolled steel with a baked on epoxy powder coated finish.
- The work surface is Stainless Steel perforated material with 1/4" dia. holes on 3/8" staggered centers.
- This slot exhauster is constructed of Stainless Steel with chemical resistant fume hood liner baffle panels.
- This Custom Slot Exhauster was constructed with white chemical resistant fume hood liner baffle panels to allow the user a clearer view of the markings on the graduated cylinders being place in front of the slot exhauster.
- This table also includes Stainless Steel containment wing walls that eliminates cross drafts in the environment that this table was installed.
|
|
