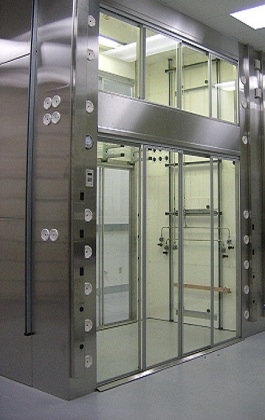

VENTILATED ENCLOSURES
Defined As:
"Custom Fume Hoods with multiple sash openings with same or different sizes on the same or multiple faces."

• Available in sizes ranging from 4 foot wide to 30 foot wide.
• Each sash is fully framed ensuring maximum protection.  Sashes can be made to any size allowing optimum equipment access.  Within any vertical sash, horizontal sashes/doors can be added to allow even easier access, minimizing exposure and saving energy.
• These horizontally sliding sashes/doors are supported from a top hung track which helps eliminate binding or dragging from debris build up in lower ball bearing tracks.
• Standard Exterior Finishes are Powder Coated Steel, Stainless Steel and Polypropylene. (Other Exterior Finishes are available upon request)
• Standard Interior Finishes are Non-Asbestos Cement Board, White Epoxy Painted Non-Asbestos Cement Board, White Chemical Resistant Fume Hood Liner (Fiberglass Reinforced Polyester Resin), Stainless Steel or Polypropylene. (Other Interior Finishes are available upon request)
• Optional pass through conduits allow for an easy and organized way to plug in equipment within the fume hood to face mounted receptacles.  Each pass through conduit is covered with a low leakage cover.

• Optional Electrical and Plumbing fixtures are available to be shipped loose or pre-wired and pre-plumbed prior to shipment.
• Optional Magnehelic Gages are available to be pre-installed prior to shipment. Magnehelic Gages are used as an independent visual indication of airflow.
• Optional TSI Variable Air Volume fume hood controls pre-installed prior to shipment.
