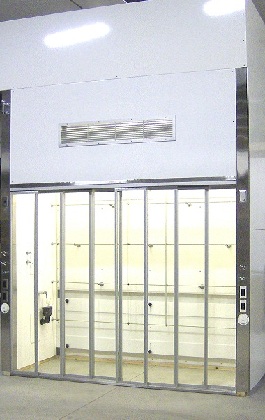

CUSTOM FUME HOODS WITH HORIZONTALLY SLIDING SASHES/DOORS

• Available in all sizes – width from 4 foot to over 20 foot wide, depth from 2 foot to over 12 foot deep and height from 4 foot to over 16 foot tall.
• These horizontally sliding sashes/doors are supported from a top hung track which helps eliminate binding or dragging from debris build up in lower ball bearing tracks.
• Standard Exterior Finishes are Powder Coated Steel, Stainless Steel and Polypropylene. (Other Exterior Finishes are available upon request)
• Standard Interior Finishes are Non-Asbestos Cement Board, White Epoxy Painted Non-Asbestos Cement Board, White Chemical Resistant Fume Hood Liner (Fiberglass Reinforced Polyester Resin), Stainless Steel or Polypropylene. (Other Interior Finishes are available upon request)
• Optional pass through conduits allow for an easy and organized way to plug in equipment within the fume hood to face mounted receptacles.  Each pass through conduit is covered with a low leakage cover.

• Optional Electrical and Plumbing fixtures can be shipped loose or Pre-Wired / Pre-Plumbed prior to shipment.
• Optional Magnehelic Gages can be shipped loose or Pre-Installed prior to shipment. Magnehelic Gages are used as an independent visual indication of airflow.
• Optional TSI Variable Air Volume fume hood controls can be shipped loose or Pre-Installed prior to shipment.
• All New-Tech Custom Fume Hoods with Horizontally Sliding Sashes/Doors are designed to pass the ASHRAE 110 As Manufactured Test.
